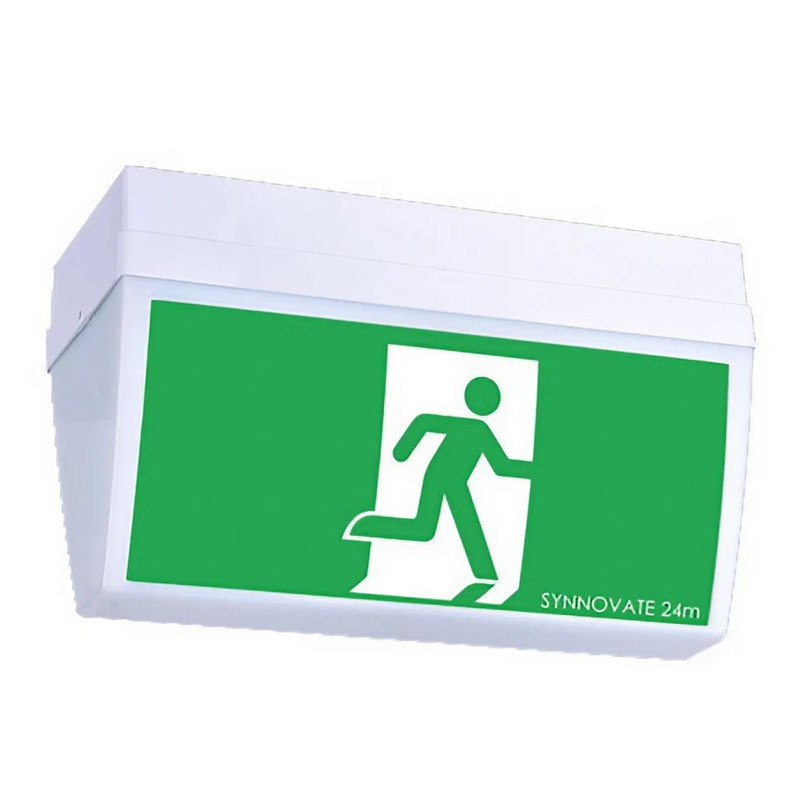

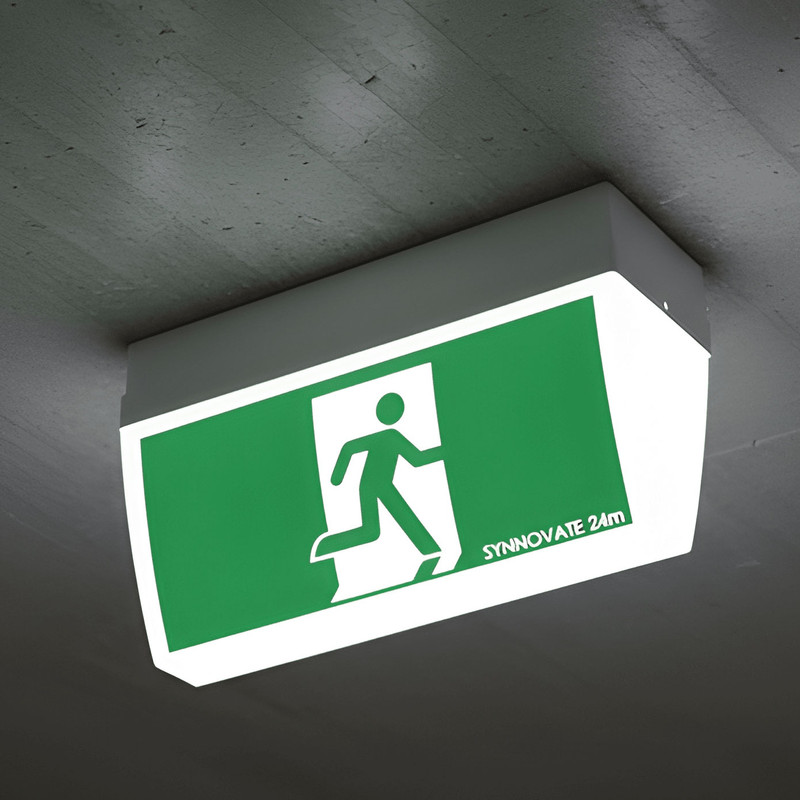

This ceiling mounted LED emergency exit light is presented in a traditional rectangular profile with a large push connect mounting base to give installers the ultimate in simplicity, flexibility, and versatility. The wide base allows installers to easily run conduit, hide access cable and conceal existing defects on a previous installation, thus reducing unforeseen and undesirable site-related challenges. Suitable for offices, warehouses, schools, factories, and public buildings.
TYPE: Industrial Strength Emergency Exit Sign
COLOUR: Green and white
WARRANTY: 5 years
IP RATING: IP20 (indoor only)
MATERIAL: Flame-retardant polycarbonate
GLOBE TYPE: High efficacy LED strip (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED strip)
LIFE SPAN: 50,000 hours
DIMENSIONS: 380mm x 160mm x 215mm
WEIGHT: 1.2kg
WATTAGE: 2W (standby)
OPERATION: Maintained / non-maintained / switchable
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATORS: Battery charger green LED
VOLTAGE: 230V (will handle 240V)
INSTALLATION: Large terminal block and 20mm² cable entry
MOUNTING: Surface mounted - ceiling
INCLUDES: Diffuser, all variations of running man pictogram, large terminal block with cable entry
APPROVAL: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
APPLICATIONS: Offices, warehouses, schools, factories, and public buildings
CLASSIFICATION: C0 D10 C90 D8
DURATION: > 2 Hours (AS/NZS 2293) during power outage
CHARGER TYPE: Intelligent 3-stage charger with battery management system
VIEWING DISTANCE: 24m
OPERATING TEMP: 1° to 40°C
