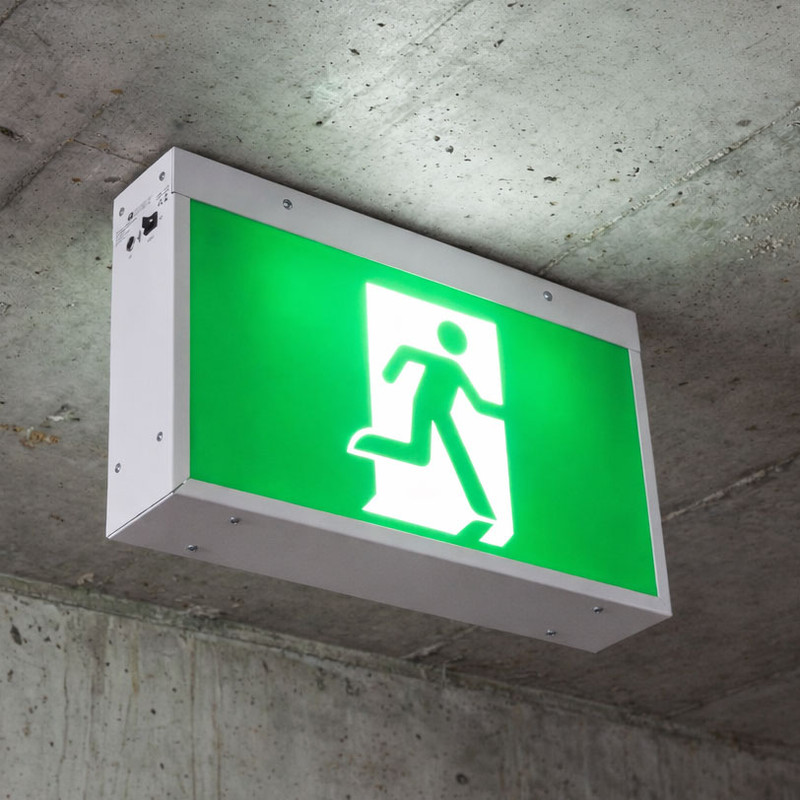

This extra large emergency exit sign provides double the viewing distance compared to conventional exit Lights and comes complete with a set of directional decals for single or double sided configurations. It comes in a robust steel chassis and can be suspended, wall or ceiling
mounted to suit large indoor spaces such as stadiums, warehouses, car parks, public buildings, tunnels and train stations.
TYPE: Extra Large Industrial Strength Emergency Exit Sign
COLOUR: Green and white
WARRANTY: 5 years
IP RATING: IP20 (indoor only)
MATERIAL: Folded sheet-metal, powdercoat white
GLOBE TYPE: High efficacy LED strip (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED strip)
LIFE SPAN: 50,000 hours
DIMENSIONS: 630mm x 100mm x 320mm
WEIGHT: 5kg
WATTAGE: 6W (standby)
OPERATION: Maintained
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING: Manual test switch
INDICATORS: Battery charger green LED
VOLTAGE: 230V (will handle 240V)
INSTALLATION: Large terminal block and 20mm² cable entry
MOUNTING: Surface mounted - wall or ceiling (single or double side application)
INCLUDES: Diffuser, all variations of running man pictogram, large terminal block with cable entry
APPROVAL: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
APPLICATIONS: Stadiums, warehouses, car parks, public buildings, tunnels and train stations.
CLASSIFICATION: C0 D6.3 C90 E3.2
DURATION: > 2 Hours (AS/NZS 2293) during power outage
CHARGER TYPE: Intelligent 3-stage charger with battery management system
VIEWING DISTANCE: 48m
OPERATING TEMP: 1° to 40°C
