This commercial grade LED batten provides a sophisticated and efficient lighting solution, offering versatility and superior performance for residential and commercial environments. Featuring an 18W power output and a tri-colour switchable capability, this batten allows users to effortlessly transition between warm white (3000K), cool white (4000K), and daylight (5000K) color temperatures to suit various applications. With a luminous efficacy delivering up to 1700 lumens at 4000K, this product ensures excellent brightness while maintaining a color rendering index (CRI) of over 80, enhancing visual clarity and color accuracy in illuminated spaces.
Constructed from durable powder-coated aluminum and paired with a polycarbonate diffuser, this LED batten combines strength with a sleek, minimalist design. Its robust materials are designed to withstand temperatures ranging from -20°C to 40°C, ensuring reliable performance in diverse indoor environments. The slim, surface-mounted design measures 600mm in length, 75mm in width, and 31mm in depth, making it a versatile option for installations where space is a consideration. With an IP20 rating, it is specifically engineered for indoor use, offering optimal functionality in homes, offices, and other controlled environments.
This batten features advanced dimmable capabilities, compatible with a range of dimmer technologies to provide customizable lighting levels. The inbuilt constant current driver ensures stable and efficient operation, with an output of 96V at 170mA and an input of 90mA, while the power factor of 0.9 underscores its energy efficiency. Designed for convenience, it is equipped with a user-friendly switch integrated into the fitting and while it can be used as is, it also supports 2-way switching as well as compatibility with three-wire motion or microwave sensors, expanding its adaptability to varied use cases.
With a lifespan of 30,000 hours and backed by a three-year warranty, this LED batten promises long-term reliability and minimal maintenance. Its lightweight design, at only 0.40kg, facilitates easy installation, while its beam angle of 110° ensures uniform light distribution across spaces. As a high-quality lighting solution, this LED batten exemplifies durability, efficiency, and versatility, making it an ideal choice for those seeking dependable and energy-saving illumination.
TYPE: LED Batten
COLOUR: White
WARRANTY: 3 years
IP RATING: IP20 (indoor only)
SWITCH: Switch on the fitting
MATERIAL: Aluminium (powder-coated), polycarbonate (diffuser)
LUMENS: 1500lm (3000K), 1700lm (4000K), 1500lm (5000K).
COLOUR TEMP: Switchable between Warm White (3000K), Cool White (4000K) and Daylight (5000K)
GLOBE TYPE: LED (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED chip)
CRI: >80
BEAM ANGLE: 110°
LIFE SPAN: 30,000 hours
AMBIENT TEMP: -20°C to 40°C
DIMMABLE: Yes
WIDTH: 75mm
DEPTH: 31mm
LENGTH: 600mm
WEIGHT: 0.40kg
WATTAGE: 18W
POWER FACTOR: 0.9
VOLTAGE: 240V
DRIVER: Inbuilt constant current driver included (output: 96V / 170mA, input: 90mA)

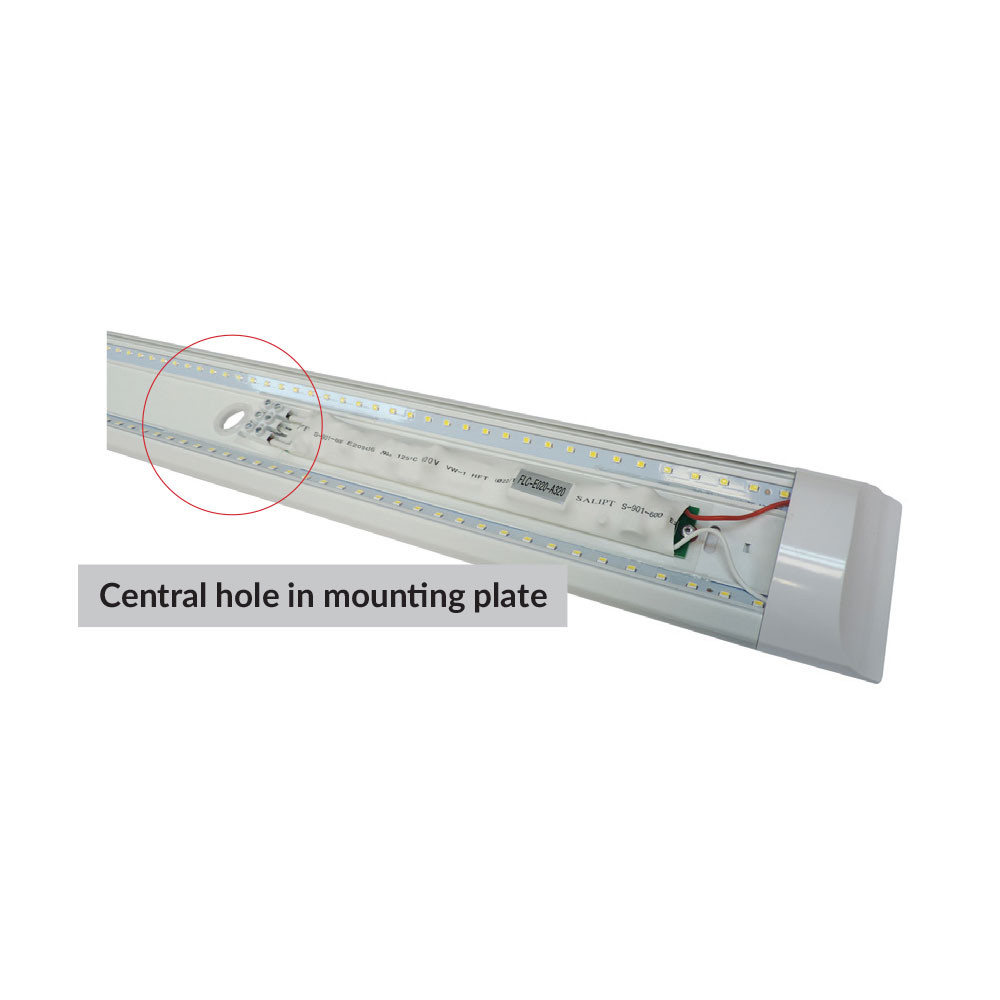

INSTALLATION: Surface Mounted
OPERATION: Use as is, optionally also suitable for 2-way switching, 3 wire motion, sensors and dimming
