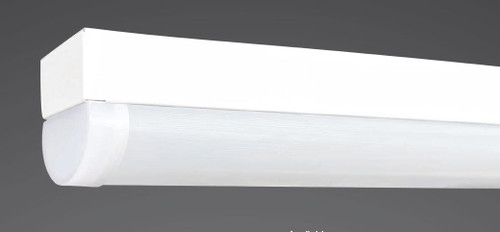

This 1220mm emergency batten light offers exceptional lighting performance for industrial applications, providing consistent and reliable illumination. The installation is quick and easy, thanks to the slide and connect bracket with a large terminal block. Its multimode operation allows for maintained, non-maintained, and main switchable modes, ensuring adaptability to various lighting needs. With a sturdy construction of folded sheet metal powder-coated white, this batten light is suitable for surface mounting on ceilings or walls. Additionally, it comes with a 3-year warranty, demonstrating its durability and reliability. Compliance with RCM / EMC, AS/NZS 2293, and AS/NZS 60598.1 standards ensures safety and quality assurance.
COLOUR: White
WARRANTY: 3 year
IP RATING: IP20
MATERIAL: Acrylic and metal
LUMENS: 5000 lm
COLOUR TEMP: Tri-Colour LED Array (3000K, 4000K, 5000K)
GLOBE TYPE: LED (fixed in fitting)
CRI: >84
BEAM ANGLE: 135°
POWER FACTOR: >95
LIFE SPAN: 50,000 hours
AMBIENT TEMP: 1° to 40°C
HEIGHT: 110mm
WIDTH: 130mm
LENGTH: 1220mm
WEIGHT: 4.0 kg
VOLTAGE: 230V AC
INSTALLATION: Slide and connect bracket with large terminal block
COMPLIANCE: RCM / EMC, A S/NZS 2293, A S/NZS 60598
CLASSIFICATION: C0 D80, C90 D50
FREQUENCY: 50Hz
MODE OF OPERATION: Multimode - maintained, non-maintained, mains switchable
POWER CONSUMPTION: 45W (Maintained), 4W (Non-Maintained)
EMERGENCY DURATION: >120 minutes
CHARGER: 16hr intelligent 3-stage charger
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING FACILITY: Manual test switch
INDICATORS: Battery charging green LED
MOUNTING: Surface mounted - ceiling/wall
BATTERY: LiFePO4
RELATIVE HUMIDITY: 0 to 95%
