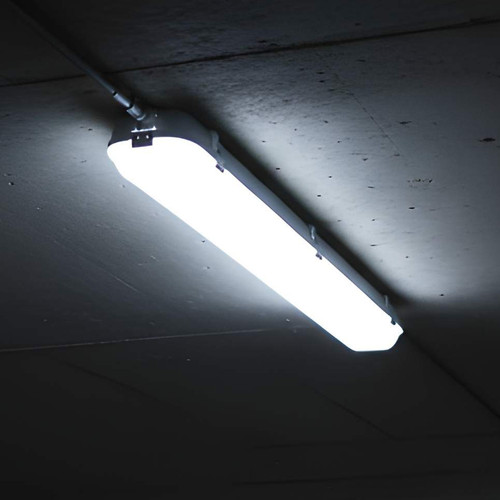

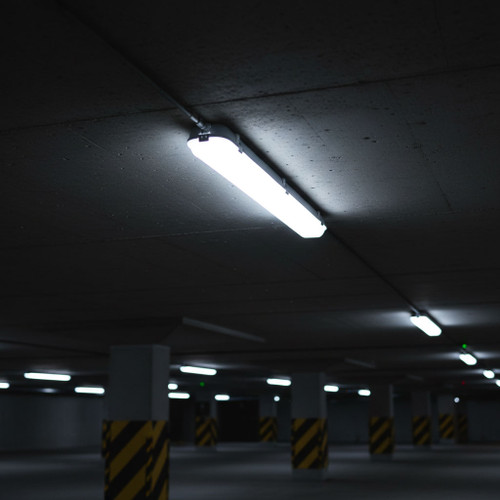

This emergency batten light is a formidable luminary crafted to withstand the rigors of the toughest indoor or outdoor environments. It combines the luminosity and energy efficiency of a high-performance LED array with the resilience of an IP65 IK10 weatherproof shell, ensuring unparalleled durability in harsh conditions. Engineered with a practical hinged cover design, installation and maintenance are made effortless, guaranteeing uninterrupted operation in demanding settings. Ideal for applications ranging from car parks to stairwells, warehouses, and beyond, this luminaire adheres to AS/NZS 2293 standards, embodying the pinnacle of safety and reliability. It offers extended battery life, enhanced performance, and improved safety, underscoring its commitment to environmental sustainability. With a 100,000-hour LED lifespan and a 3-year warranty, this emergency batten stands as a testament to ingenuity and quality craftsmanship. It's not just a luminaire; it's a symbol of resilience in the face of adversity.
COLOUR: White
WARRANTY: 3 year
IP RATING: IP65 (fully weatherproof against torrential rain)
IK RATING: IK10 (vandalproof)
MATERIAL: Metal, high transmission opal polycarbonate diffuser, polycarbonate chassis
LUMENS: 2500 lm
COLOUR TEMP: 4000K / 5000K / 6000K (tri-colour)
GLOBE TYPE: LED (fixed in fitting)
CRI: >84
BEAM ANGLE: 120°
POWER FACTOR: >95
LIFE SPAN: 100,000 hours for LED
AMBIENT TEMP: 1° to 40°C
HEIGHT: 90mm
WIDTH: 115mm
LENGTH: 665mm
WEIGHT: 2.0 kg
VOLTAGE: 230V AC
INSTALLATION: Surface mounted - ceiling / wall
COMPLIANCE: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1, SAA Approval SAA140984
CLASSIFICATION: C0 D63, C90 D40
FREQUENCY: 50Hz
MODE OF OPERATION: Multimode - maintained, non-maintained
POWER CONSUMPTION: 22W (Maintained), 3W (Non-Maintained)
EMERGENCY DURATION: >120 minutes
CHARGER: 16hr intelligent 3-stage charger
PROTECTION: Overcharge, low voltage disconnect, overcurrent, short circuit
TESTING FACILITY: Manual test switch
INDICATORS: Battery charging green LED
BATTERY: LiFePO4
RELATIVE HUMIDITY: 0 to 95%
OPERATION: Single point (normal) as well as DALI (if DALI required please inquire)
