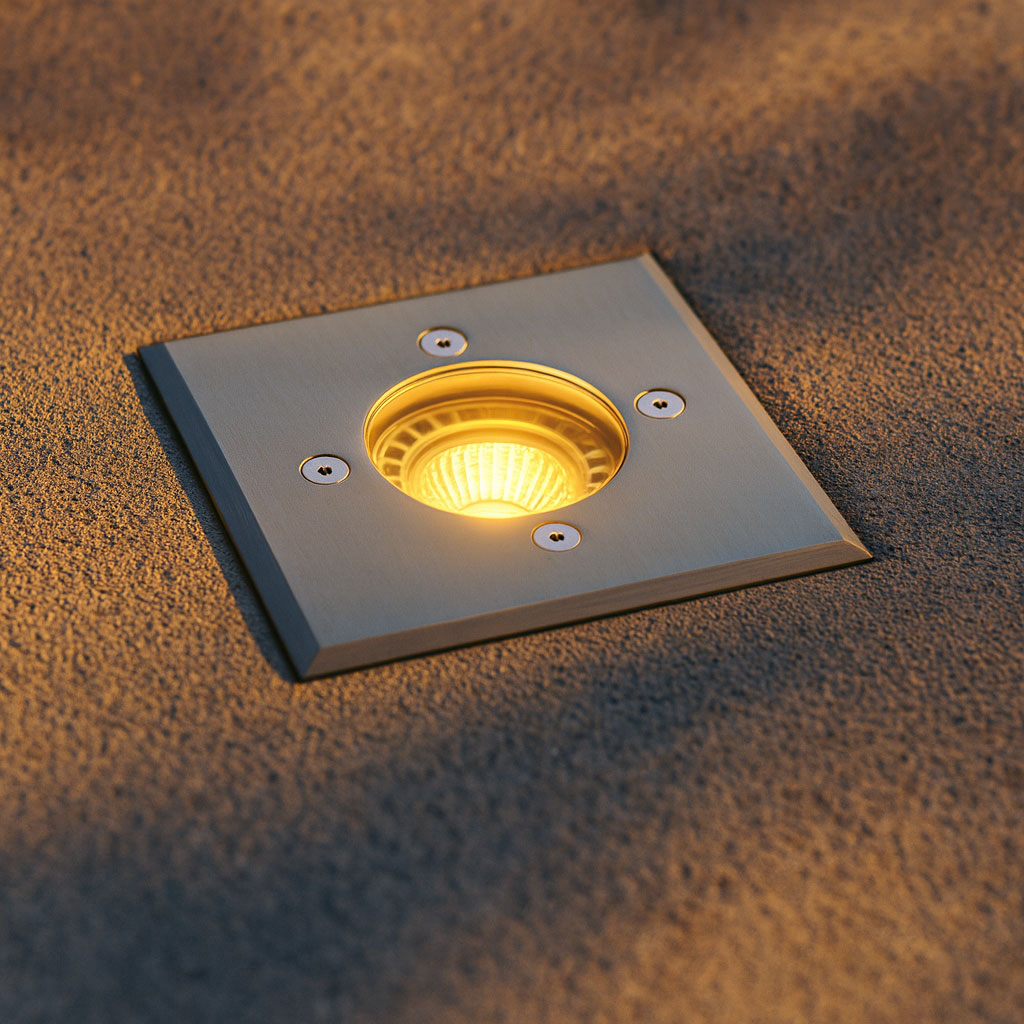

Product Name:	20W Ground Light 12V Marine Grade 316 Stainless Steel MR16 IP67 120mm Square
Product Code:	14173

This large square ground light delivers a superb lighting solution to your outdoor space. It has an 8mm tempered glass with a maximum load capacity of 600kg. Its 316 stainless steel marine grade finish is suitable for long years of use.

TYPE: Ground Light
COLOUR: Chrome
WARRANTY: 2 years
IP RATING: IP67 (fully weatherproof)
MATERIAL: 316 Stainless steel (faceplate), aluminium (housing)
GLOBE TYPE: MR16
GLOBE INCLUDED: No
HEIGHT: 114mm
WIDTH: 120mm x 120mm
WEIGHT: 0.8kg
WATTAGE: 20W (max)
VOLTAGE: 12-25V DC / AC
INSTALLATION: Plastic sleeve (must be installed), max load capacity 600kg
INCLUDES: Plastic sleeve, fitting slides into sleeve and remains unattached, 9.5m cable, 8mm tempered glass
OPERATION: External control gear required

Product Name: 20W Ground Light 12V Marine Grade 316 Stainless Steel MR16 IP67 120mm Square
Product Code: 14173
Sales Inquiries: 03 9973 6373
Email Inquiries: service@lightingstyle.com.au

Lighting Style
ABN 97 623 567 868
www.lightingstyle.com.au

This product conforms to AS/NZ electrical standards. Unless marked as DIY, electrical installation must be performed by a licensed electrician. The information in this datasheet has been carefully checked and is believed to be accurate - it is our practice to provide accurate information wherever possible; however, final specifications may vary. Performance data given in this document are provided as a guide for the user in determining suitability and do not constitute a warranty. Actual performance is subject to the Warranty and Limitations of Liability. Lighting Style shall not be responsible for special, indirect, or consequential damages or loss in any way connected with this product. Warranty is subject to the product being properly handled, stored, installed, and maintained.
