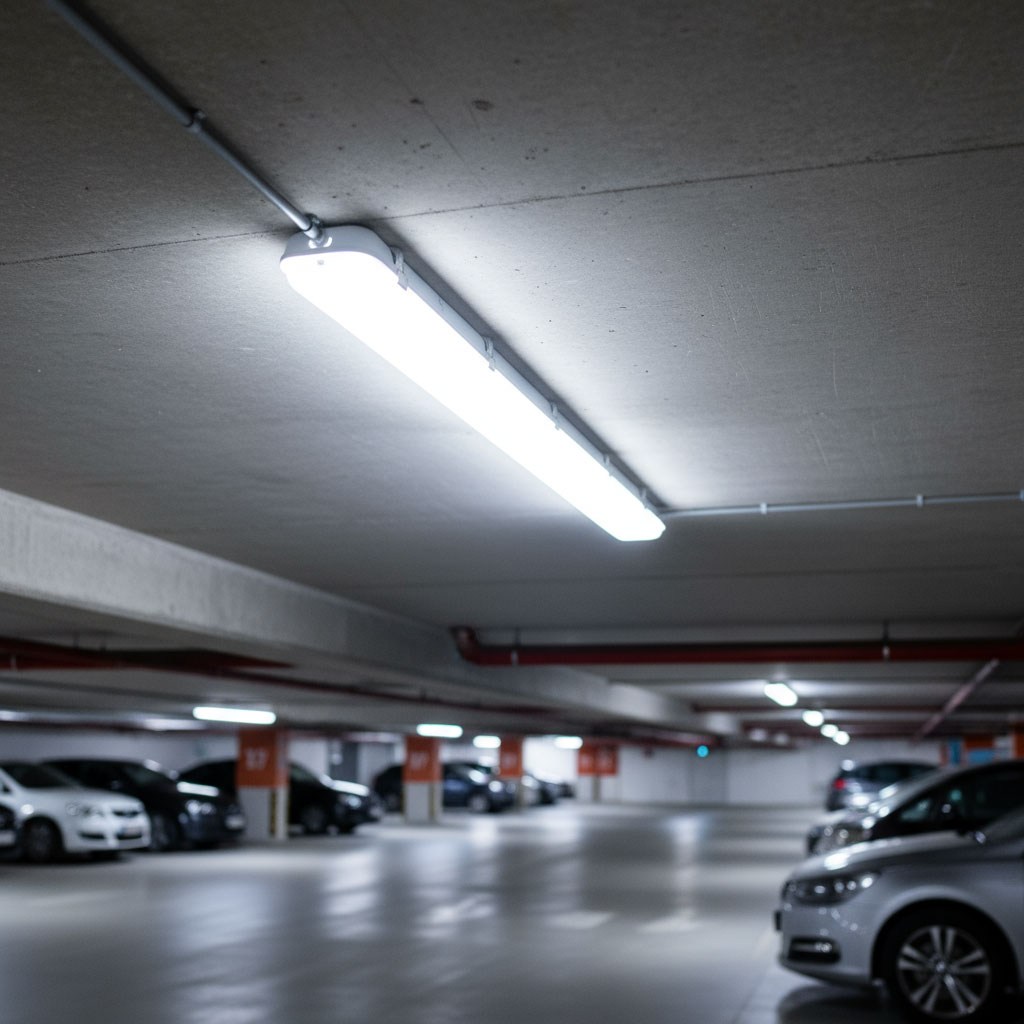

This vandal-proof water-proof emergency LED batten is a serious industrial strength light. It has a very long warranty and a tough corrosion resistant polycarbonate IP65 IK10 outer shell to protect it against harsh environments including water, dust and vandalism. It comes with a hinged cover that ensures ease of installation and hassle-free maintenance. Applications include wet rooms, commercial and retail spaces, coastal environments, apartments, shopping centres, car parks, stairwells, hospitality areas, prisons, hospitals, warehouses and tunnels. It has an emergency 2 hour battery pack that permits self powered operation during power outages.
TYPE: Industrial Strength Emergency LED Batten
COLOUR: Grey with white diffuser
WARRANTY: 5 years
IP RATING: IP65 (fully weatherproof)
MATERIAL: Marine grade polycarbonate with 316 stainless steel clips
LUMENS: 5000 lm
COLOUR TEMP: 4000K (cool white)
GLOBE TYPE: LED (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED array)
CRI: >84
BEAM ANGLE: 120°
DIMMABLE: No
DIMENSIONS: 1275mm L x 90mm H x 140mm D
WATTAGE: 40W (4W when non-maintained)
VOLTAGE: 240V
INSTALLATION: Surface mounted (ceiling / wall)
INCLUDES: 316 stainless steel brackets for easy mounting
IK RATING: IK10 (highest rating vandal proof)
CLASSIFICATION: C0 D80, C90 D50
STANDARDS: RCM / EMC, AS/NZS 2293, AS/NZS 60598.1
DURATION: > 2 hours emergency lighting during outage
CHARGING TIME: 16 hours
CHARGER: Continuous intelligent 3-stage charger with battery management system
DRIVER / BATTERY: Designed for 10 years lifecycle
INSTALLATION: Large terminal block, 20mm² cable entry
OPERATION MODE: Multimode - maintained / non-maintained / mains switchable
PROTECTION: Overcharge, low voltage disconnect, over-current, short circuit
TESTING: Manual test switch
INDICATORS: Battery charging green LED
MAX AMBIENT: 40°C
AVAILABLE OPTIONS: Replacement battery, microwave dimming sensor, DALI (contact us if required)
