This LED batten light is a sophisticated and reliable lighting solution engineered for both domestic and commercial applications. Its sleek design features a white powder-coated sheet metal body complemented by a durable wire guard, ensuring protection and longevity in demanding environments. The dual wattage functionality allows users to effortlessly toggle between 7.5W and 15W outputs via the integrated LED driver switch, providing customizable illumination tailored to diverse needs. With a wide beam angle of 120° and an impressive efficacy of 130 lumens per watt, this light delivers bright, uniform illumination up to 1950 lumens, enhancing visibility and safety in various settings.
The advanced Tri-CCT technology offers seamless color temperature adjustments between 3000K (Warm White), 4000K (Cool White), and 5000K (Daylight White), ensuring optimal ambiance and precision lighting for any application. A high CRI of ≥80 guarantees excellent color rendering, making this light ideal for areas requiring accurate visual clarity. The integrated SMD LED chips are designed for efficiency and durability, further extending the product’s operational life. The dimmable sensor functionality, adjustable via a remote control, provides an additional layer of customization, enabling multiple modes, on/off automation, and dimming to suit specific usage scenarios.
This batten light is surface-mounted and features a robust PA16 large terminal, facilitating straightforward installation. The design incorporates 20mm knockouts for conduits or cable glands, ensuring compatibility with a range of wiring configurations. The unit complies with AS2293.3-2005 standards and meets EMC requirements, affirming its safety and quality. Its IP20 rating makes it suitable for indoor use, while the dual wattage and Tri-CCT versatility accommodate varied lighting requirements in domestic spaces such as laundries, garages, and storerooms, as well as commercial environments like underground car parks.
An essential accessory for this batten light is the advanced remote control, which is required for full sensor operation and dimming capabilities but is not included with the fixture. Designed for reliability and performance, this light comes with a five-year replacement warranty, underscoring its high quality and enduring value. This versatile and high-performing lighting solution is an excellent choice for users seeking energy efficiency, advanced control options, and adaptability in residential or commercial spaces.
Please note:the remote control accessory is purchased separately because you only need one remote to control any number of LED battens lights.
COLOUR: White
MATERIAL: Sheet metal (white powder-coated) with wire guard
DIMMABLE: Yes (manual dimming by remote control)
SENSOR: Yes (dimmable, on/off and multiple modes set by remote control)
VOLTAGE: 240V AC
WATTAGE: 7.5W / 15W (dual wattage - switchable)
LUMENS: Up to 1950lm (130lm/W)
IP RATING: IP20 (indoors only)
LED TYPE: SMD
GLOBE: LED (includes fixed LED chips in fitting)
COLOUR TEMP: Switchable between 3000K (Warm White), 4000K (Cool White), 5000K (Daylight White)
CRI: ≥80
BEAM ANGLE: 120°
DIMENSIONS: 620mm x 109mm x 82mm
MOUNTING: Surface mounted
OPERATION: Press the switch located on the LED driver to adjust the light output to 7.5W or 15W
TERMINAL: Large Terminal, PA16
APPROVAL: Complies with AS2293.3-2005+ AMD 1&2 Annex C / EMC compliant
FEATURES: Dual wattage option; 20mm knockouts for conduit or cable glands

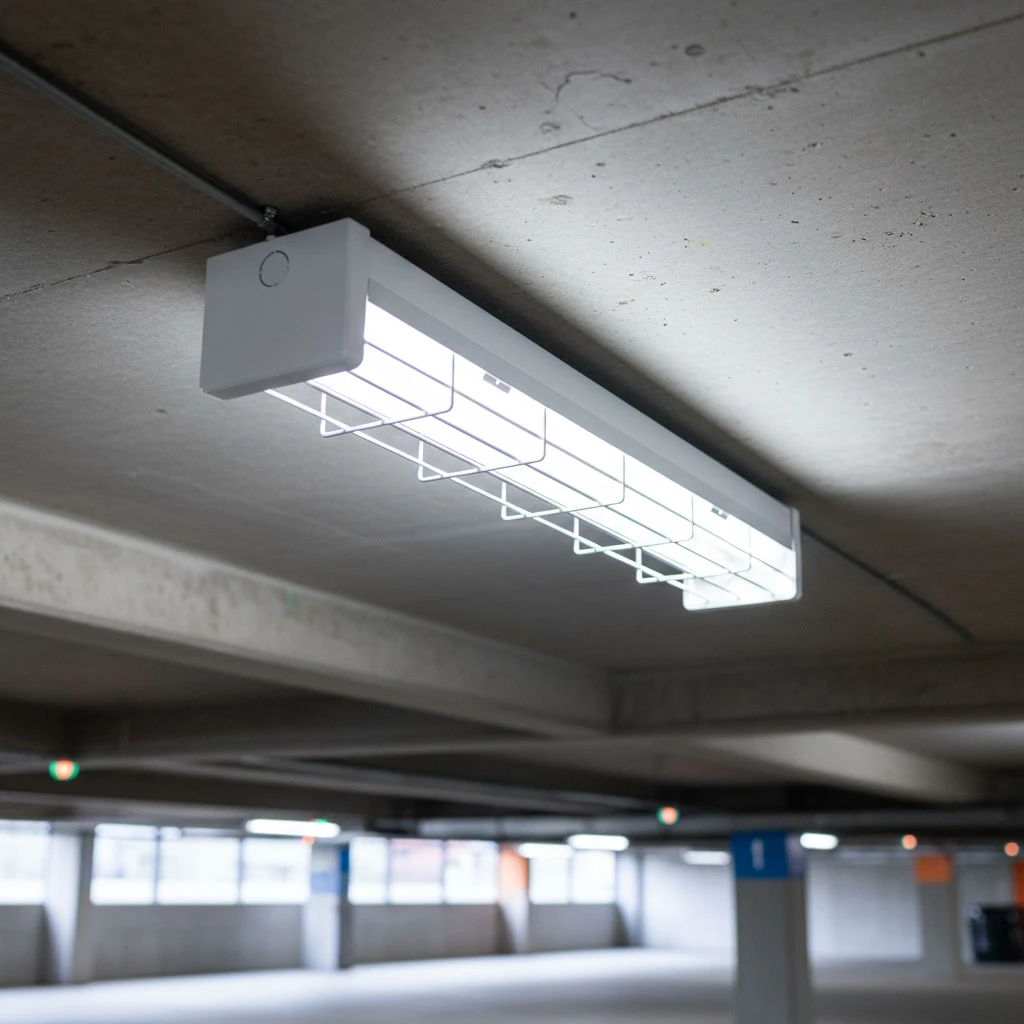

APPLICATIONS: Suitable for domestic use in laundries, garages, storerooms; commercial use in underground carparks
IMPORTANT: This requires the following accessory to operate: Remote Control For Batten Light With Sensor - Advanced Control
WARRANTY: 5 years (replacement)
