Product Name:	Round 12V 3.6W LED Cabinet Light White Finish / White LED
Product Code:	6342

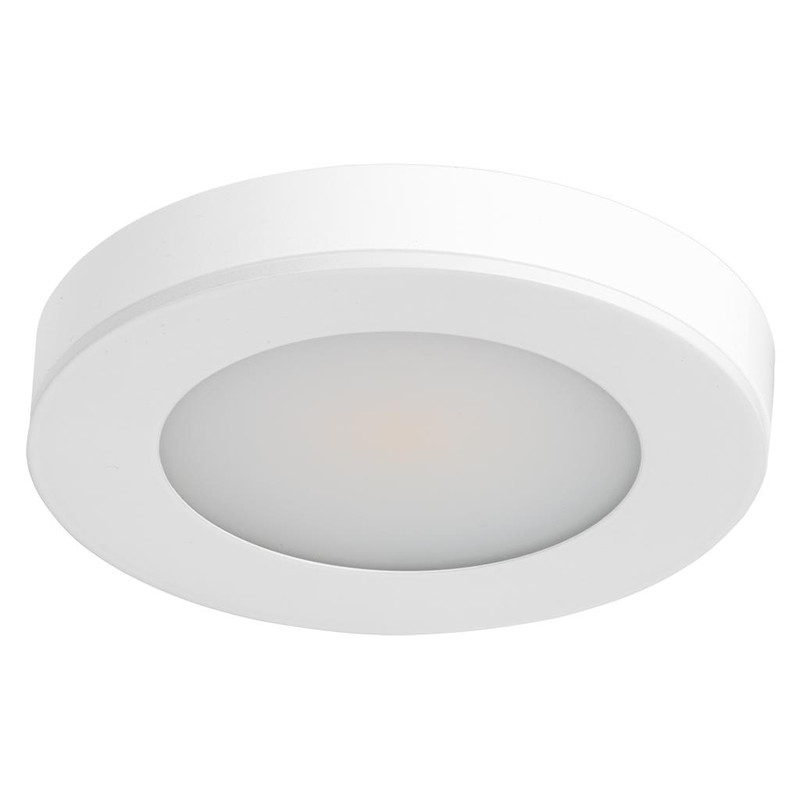

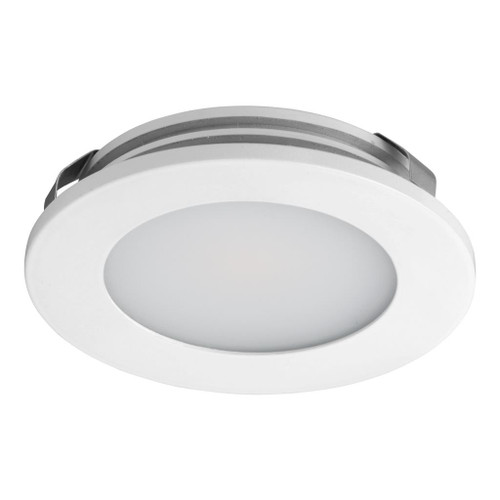

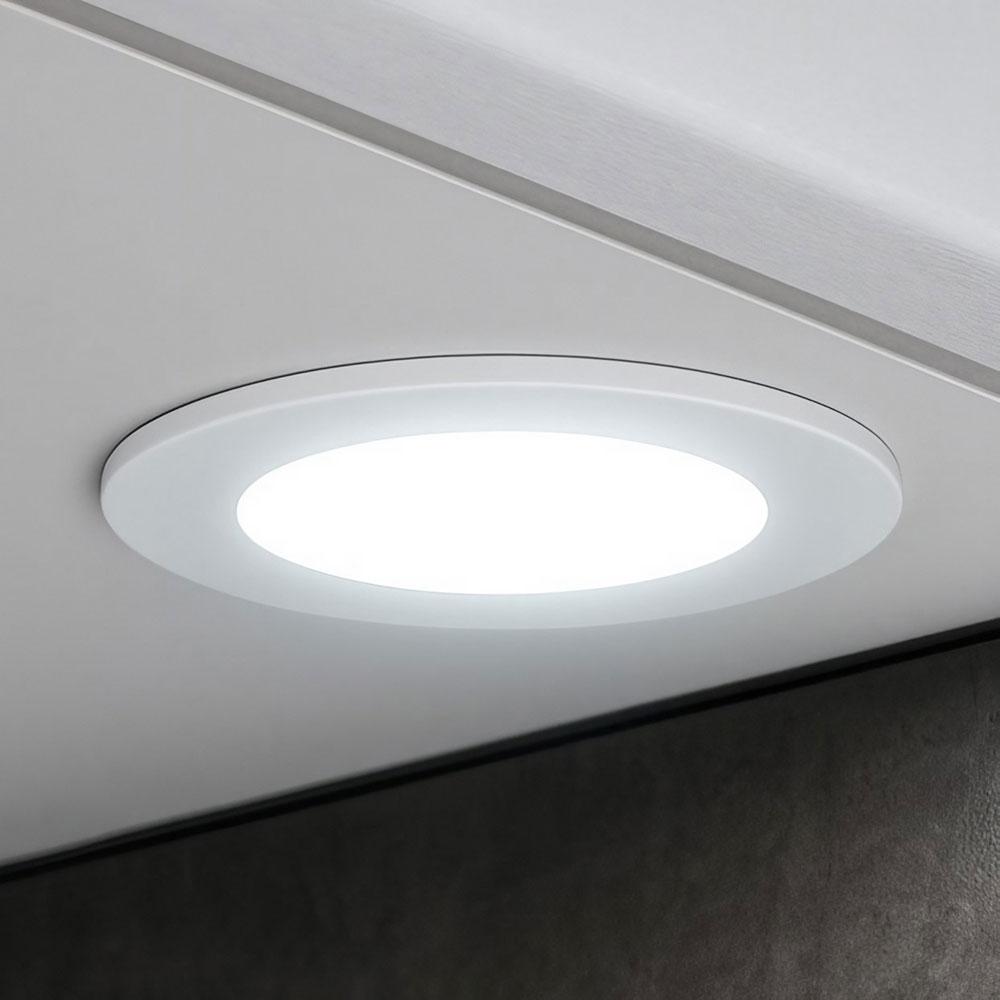

The ASTRA LED Cabinet Light features a high output 3W COB LED to offer superior performance and light over the working area whilst only consuming a total 3.6W of energy. The ASTRA offers two mounting options to cover a wide range of applications. These include recessed mounting or surface mounting. Smooth even lighting is provided from a single light point and frosted lens. Requires: 12V DC driver.

TYPE: Cabinet Lights - Indoor
PRODUCT FAMILY: Astra
COLOUR: White
SHAPE: Round
WARRANTY: 3Y
WARRANTY TYPE: Replacement
IP RATING: IP44
LUMENS: 205LM
COLOUR TEMP: 5000K
HEIGHT: 21MM
DIAMETER: 65MM
CUTOUT DIAMETER: 57MM
CUTOUT DEPTH: 11MM
WATTAGE: 3.6W
VOLTAGE: 12V

Product Name: Round 12V 3.6W LED Cabinet Light White Finish / White LED
Product Code: 6342
Sales Inquiries: 03 9973 6373
Email Inquiries: service@lightingstyle.com.au

Lighting Style
ABN 97 623 567 868
www.lightingstyle.com.au

This product conforms to AS/NZ electrical standards. Unless marked as DIY, electrical installation must be performed by a licensed electrician. The information in this datasheet has been carefully checked and is believed to be accurate - it is our practice to provide accurate information wherever possible; however, final specifications may vary. Performance data given in this document are provided as a guide for the user in determining suitability and do not constitute a warranty. Actual performance is subject to the Warranty and Limitations of Liability. Lighting Style shall not be responsible for special, indirect, or consequential damages or loss in any way connected with this product. Warranty is subject to the product being properly handled, stored, installed, and maintained.
