Product Name:	White Classic Small Square Exhaust Fan
Product Code:	2096

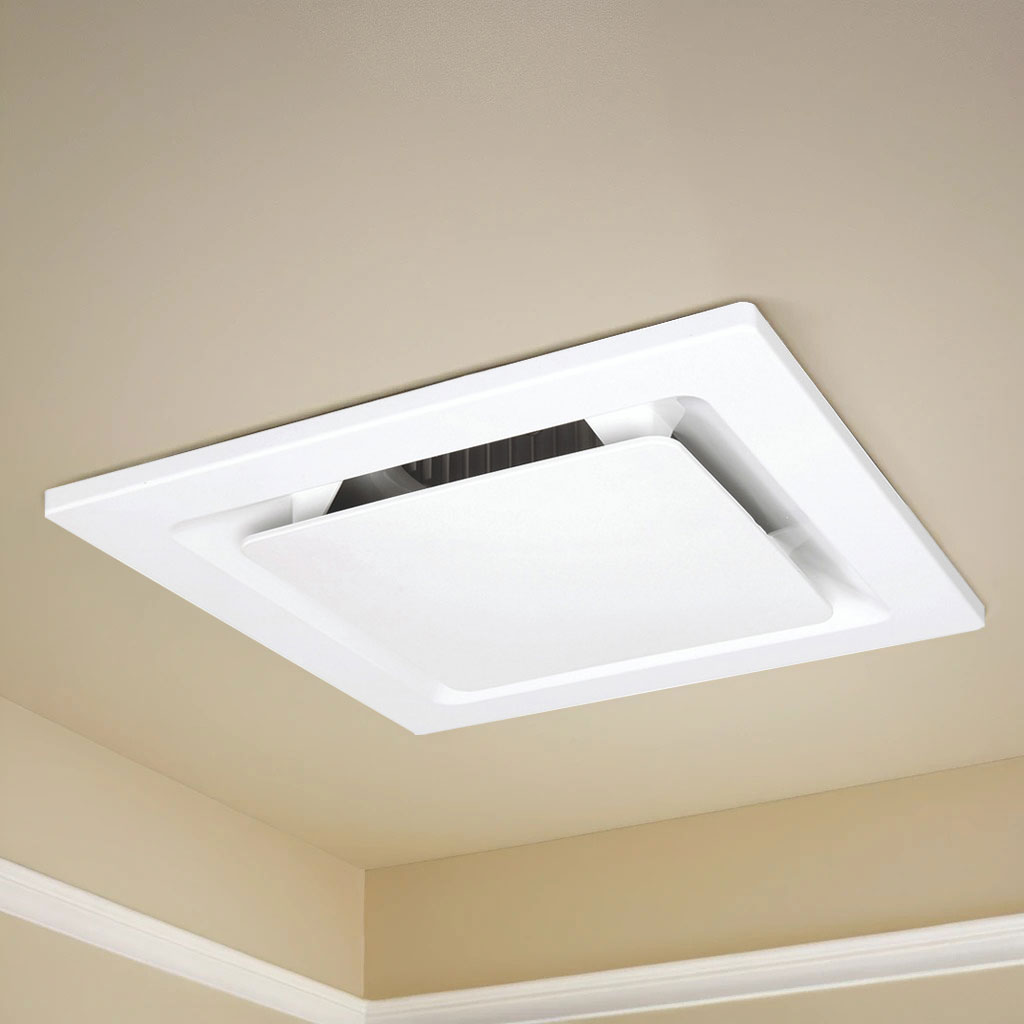

Square design exhaust fan with removable cover along with a whisper quiet ball bearing motor.
Features easy installation clamps to secure fan into place, a 150mm side exhaust duct to prevent ceiling objects falling through and side damper.
Requires a switched surface socket for DIY installation.

TYPE: exhaust fan
STYLE: modern
COLOUR: white
WARRANTY: 12-Month
EXHAUST: Up to 75L/sec
HEIGHT: 194mm
WIDTH: 270x270mm
CUTOUT: 240mm (diameter)
WATTAGE: 25W (max)
VOLTAGE: 240V
DATA SHEET: available upon request
DIY: Yes (easy installation)
CLEARANCE: 220mm (minimum)
PLUG: yes (comes with wall plug)

Product Name: White Classic Small Square Exhaust Fan
Product Code: 2096
Sales Inquiries: 03 9973 6373
Email Inquiries: service@lightingstyle.com.au

Lighting Style
ABN 97 623 567 868
www.lightingstyle.com.au

This product conforms to AS/NZ electrical standards. Unless marked as DIY, electrical installation must be performed by a licensed electrician. The information in this datasheet has been carefully checked and is believed to be accurate - it is our practice to provide accurate information wherever possible; however, final specifications may vary. Performance data given in this document are provided as a guide for the user in determining suitability and do not constitute a warranty. Actual performance is subject to the Warranty and Limitations of Liability. Lighting Style shall not be responsible for special, indirect, or consequential damages or loss in any way connected with this product. Warranty is subject to the product being properly handled, stored, installed, and maintained.
