Product Name:	Step Light Semi-Circle 12V 3000K 107lm 47mm 1W Bronze Age
Product Code:	14167

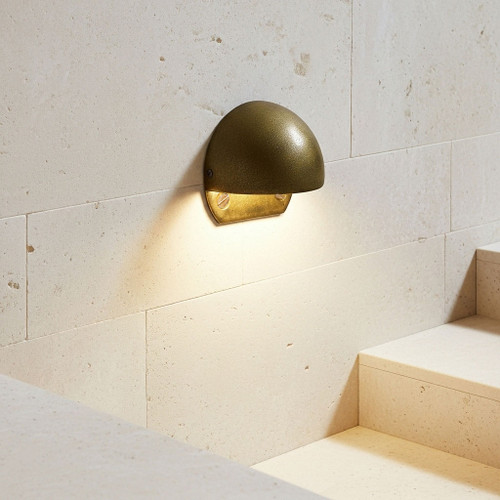

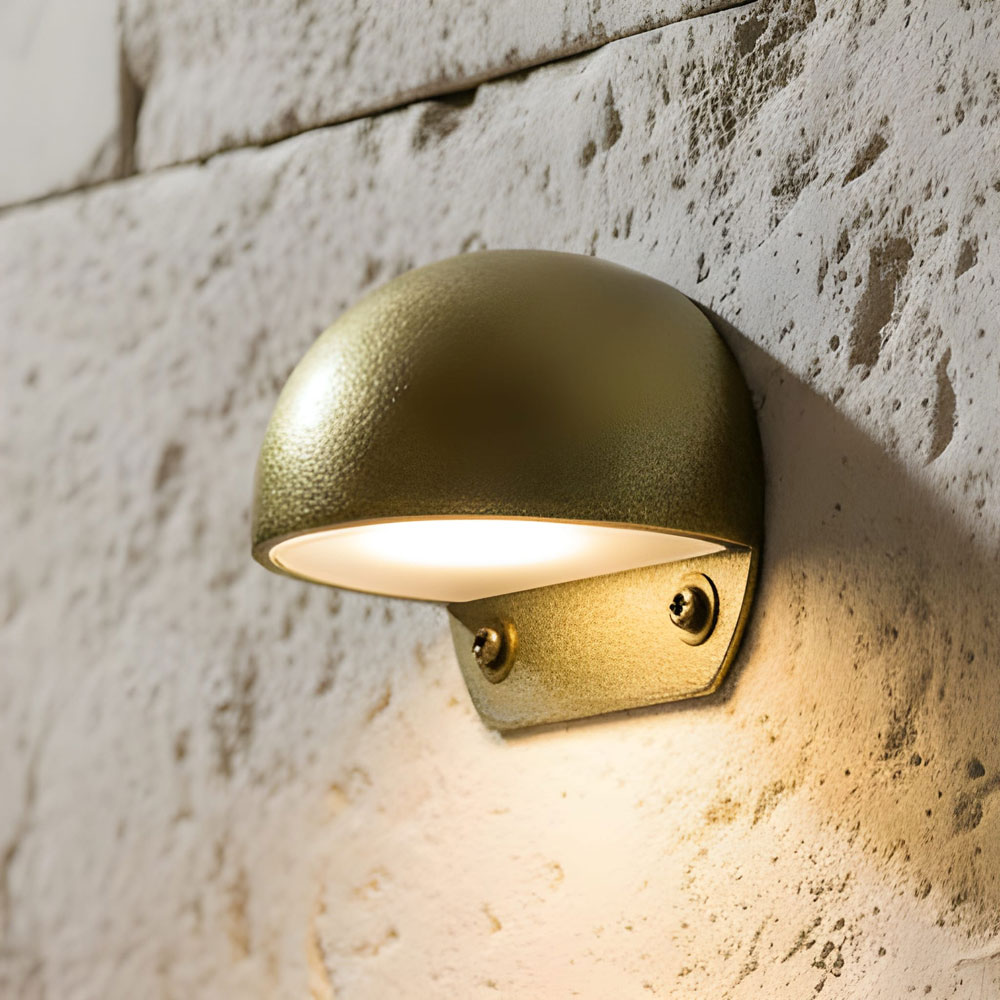

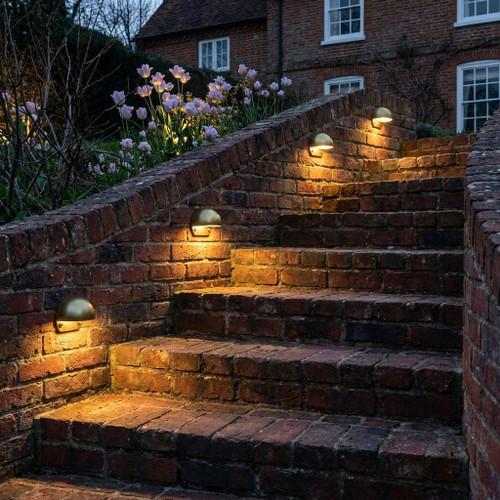

This semi-circle step light can illuminate your outdoor steps brightly during the night. Its bronze finish makes it durable and classy.

TYPE: Step Light
COLOUR: Bronzed Age
WARRANTY: 2 years
IP RATING: IP65 (fully weatherproof)
MATERIAL: Solid bronze
LUMENS: 107 lm
COLOUR TEMP: 3000K (warm white)
GLOBE TYPE: LED (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED chip)
CRI: 80
BEAM ANGLE: 120°
LIFE SPAN: 50,000 hours
AMBIENT TEMP: -40 to 85°C
DIMMABLE: No
HEIGHT: 47mm
WIDTH: 55mm
PROJECTION: 40mm
WEIGHT: 0.46kg
WATTAGE: 1W
POWER FACTOR: 0.4
VOLTAGE: 9-14V DC
DRIVER: Requires waterproof 12V DC constant voltage driver
INSTALLATION: Surface mounted
OPERATION: Suitable for 12V AC iron core transformers, 2 way switching, sensors with compatible drivers

Product Name: Step Light Semi-Circle 12V 3000K 107lm 47mm 1W Bronze Age
Product Code: 14167
Sales Inquiries: 03 9973 6373
Email Inquiries: service@lightingstyle.com.au

Lighting Style
ABN 97 623 567 868
www.lightingstyle.com.au

This product conforms to AS/NZ electrical standards. Unless marked as DIY, electrical installation must be performed by a licensed electrician. The information in this datasheet has been carefully checked and is believed to be accurate - it is our practice to provide accurate information wherever possible; however, final specifications may vary. Performance data given in this document are provided as a guide for the user in determining suitability and do not constitute a warranty. Actual performance is subject to the Warranty and Limitations of Liability. Lighting Style shall not be responsible for special, indirect, or consequential damages or loss in any way connected with this product. Warranty is subject to the product being properly handled, stored, installed, and maintained.
