Product Name:	White Next Gen High Exhaust fan 325mm Talon
Product Code:	2094

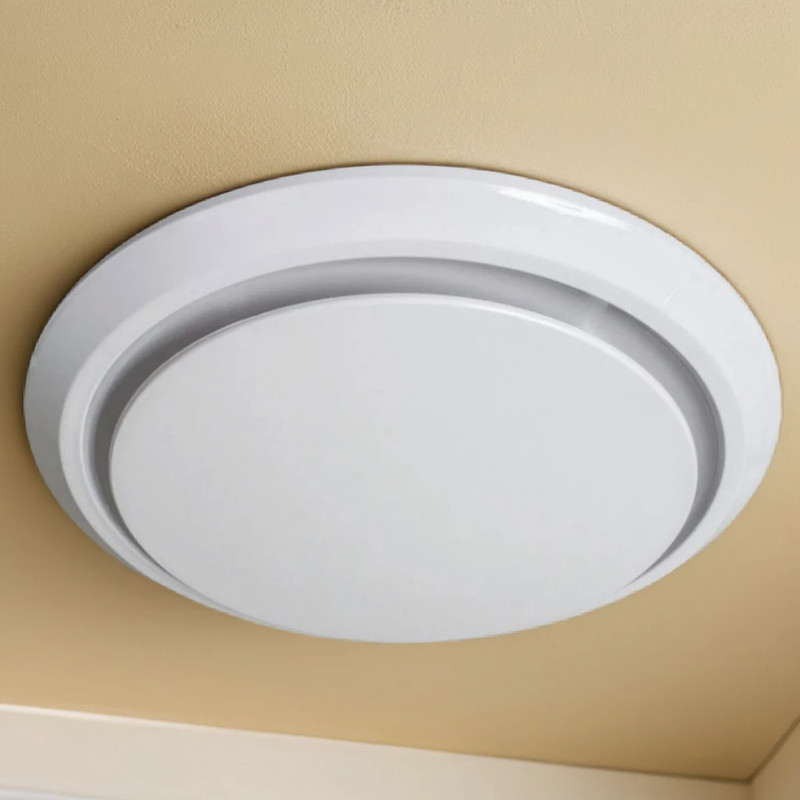

Round 325mm design exhaust fan with removable cover with a long life 28W ball bearing motor.
Features easy installation clamps to secure fan into place, a 150mm side exhaust duct to prevent ceiling objects falling through and side damper.
Requires a switched surface socket for DIY installation.

TYPE: exhaust fan
STYLE: modern
COLOUR: white
WARRANTY: 3 year replacement
FITTING: comes with plug-in socket
EXHAUST: 88 L/sec (320 m³/hr)
HEIGHT: 194mm
DIAMETER: 325mm
AT CEILING: needs minimum clearance of 220mm
CUTOUT: 290mm diameter
WATTAGE: 28W (max)
VOLTAGE: 240V
INSTALLATION: DIY easy installation
DATA SHEET: available upon request
