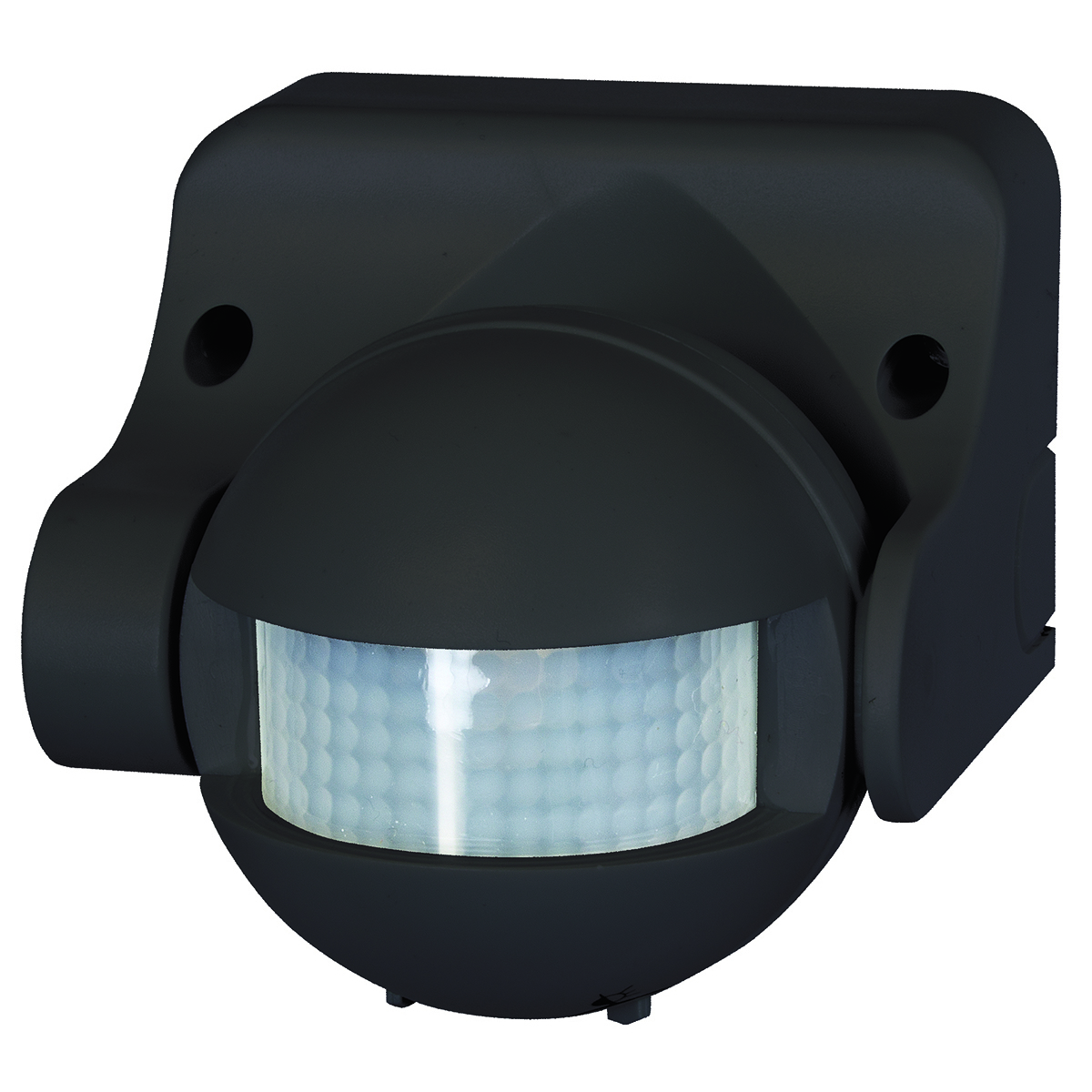

Product Name:	Uni-Scan 180 degree PIR Security Sensor Black
Product Code:	2432

Passive Infra-red technology
Multi-segemented lens for better detection
3-Wire design for greater reliability
IP44 weather-resistant Rated
MAX LOAD: 300W Incandescent, 100W Inductive
OPERATING TEMP: -5 to 45 degrees Celsius
IP RATING: IP44
WARRANTY: 2-Year
DETECTION AREA: 180 degrees
DETECTION RANGE: 12 metres
TIME ON: 10sec to 4min

TYPE: security sensor
COLOUR: black
HEIGHT (cm): 9.2
WIDTH (cm): 10
DEPTH (cm): 8

Product Name: Uni-Scan 180 degree PIR Security Sensor Black
Product Code: 2432
Sales Inquiries: 03 9973 6373
Email Inquiries: service@lightingstyle.com.au

Lighting Style
ABN 97 623 567 868
www.lightingstyle.com.au

This product conforms to AS/NZ electrical standards. Unless marked as DIY, electrical installation must be performed by a licensed electrician. The information in this datasheet has been carefully checked and is believed to be accurate - it is our practice to provide accurate information wherever possible; however, final specifications may vary. Performance data given in this document are provided as a guide for the user in determining suitability and do not constitute a warranty. Actual performance is subject to the Warranty and Limitations of Liability. Lighting Style shall not be responsible for special, indirect, or consequential damages or loss in any way connected with this product. Warranty is subject to the product being properly handled, stored, installed, and maintained.
