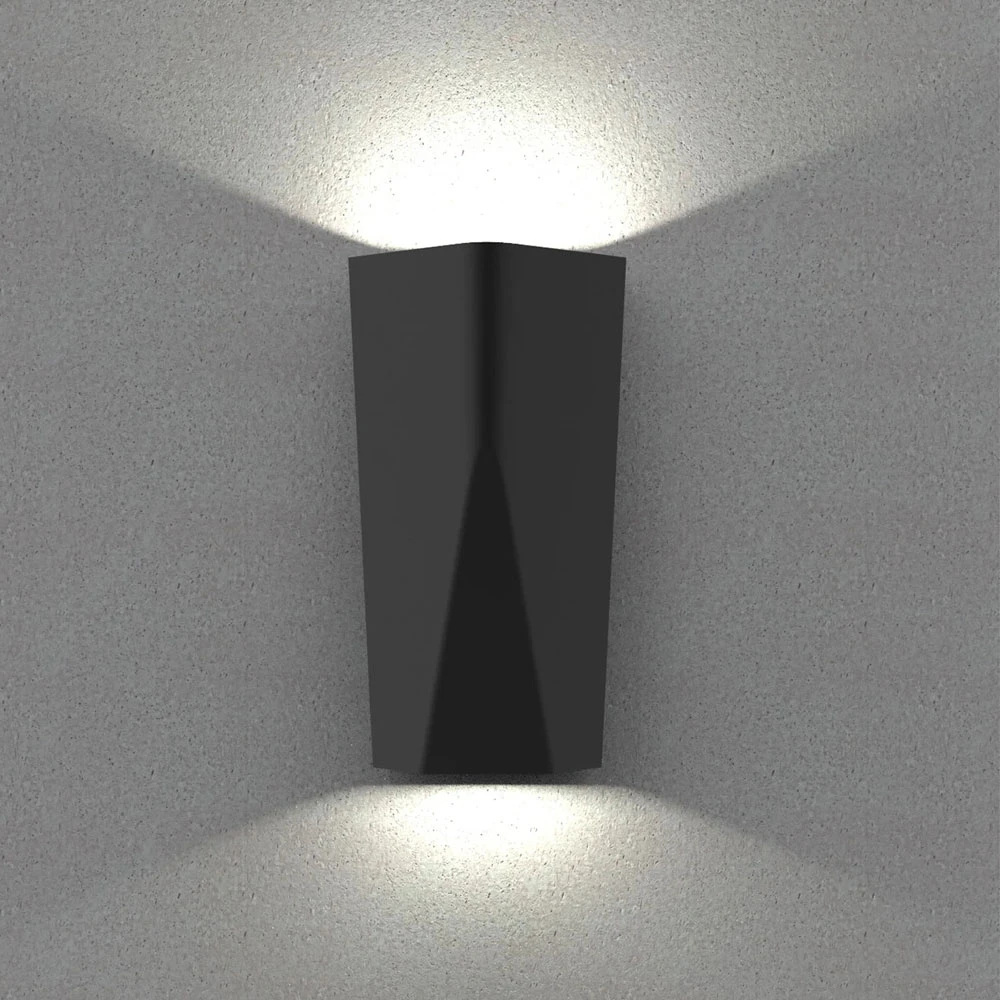

This Up Down Light is an elegant and highly functional lighting solution, meticulously designed to enhance both residential and commercial spaces. Its dark grey aluminum construction, finished with a durable powder coating, offers a sleek and modern aesthetic while ensuring resilience against environmental conditions. Fully weatherproof with an IP65 rating, this light is engineered to withstand exposure to rain, dust, and other outdoor elements, making it ideal for a wide range of exterior applications. The robust design is complemented by a three-year warranty, providing confidence in its long-term performance.
The light features an advanced Tri-CCT capability, allowing users to select between 3000K (warm white), 4000K (cool white), or 6500K (daylight white) with a convenient switch. This versatility enables precise control over the lighting atmosphere to suit various preferences and settings. With a luminous output of 297lm to 351lm depending on the chosen color temperature, and a focused beam angle ranging from 63.60° to 67.60° (adjustable via included stickers), this fixture provides optimal illumination for architectural accents and outdoor pathways. The built-in fixed LED chip ensures consistent, energy-efficient performance with a high Color Rendering Index (CRI) of 80, enhancing the visual fidelity of illuminated areas.
Designed for reliability, this 11W Up Down Light operates within a wide voltage range of 100-240V AC and features a high power factor of 0.9, indicating efficient energy use and minimal electrical losses. The inbuilt constant current LED driver further ensures stable performance, with output specifications of 18-42V and 300mA. Its projected lifespan of 30,000 hours guarantees enduring functionality, while its surface-mounted installation and compatibility with 2-way switching and PIR or microwave sensors make it a practical choice for modern lighting needs.
Measuring 200mm in height, 106mm in width, and projecting 62mm from the wall, this compact and lightweight luminaire (0.8kg) is both unobtrusive and effective. The inclusion of two stickers to modify the beam angle provides flexibility in achieving the desired lighting effect. Suitable for operation in ambient temperatures ranging from -20°C to 40°C, this Up Down Light delivers exceptional performance and durability in diverse climates. It is a premium, energy-efficient lighting solution tailored to meet the demands of contemporary outdoor design.
TYPE: Up Down Light
COLOUR: Dark Grey
WARRANTY: 3 years
IP RATING: IP65 (fully weatherproof)
MATERIAL: Aluminium (powder coated)
COLOUR TEMP: 3000K (warm white), 4000K (cool white), 6500K (daylight white) - via switch
LUMENS: 297lm (3000K), 351lm (5000K), 294lm (6500K)
GLOBE TYPE: LED (fixed in fitting)
GLOBE INCLUDED: Yes (fixed LED chip)
CRI: 80
BEAM ANGLE: 67.60° without sticker, 63.60° or 65.10° (with sticker)
LIFE SPAN: 30,000 hours
AMBIENT TEMP: -20 to 40°C
DIMMABLE: No
HEIGHT: 200mm
WIDTH: 106mm
PROJECTION: 62mm
WEIGHT: 0.8kg
WATTAGE: 11W
POWER FACTOR: 0.9
VOLTAGE: 100-240V AC
DRIVER: Inbuilt constant current LED driver included (output: 18-42V / 300mA, input: 0.053A)
INSTALLATION: Surface mounted
INCLUDES: 2 stickers included which allow narrowing of beam angle at both or either end
OPERATION: Suitable for 2-way switching, with PIR or Microwave sensors
BACKPLATE: 17mm length x 9mm width
